Waveguide CO2-laser
— I love the smell of napalm in the morning ©
Description

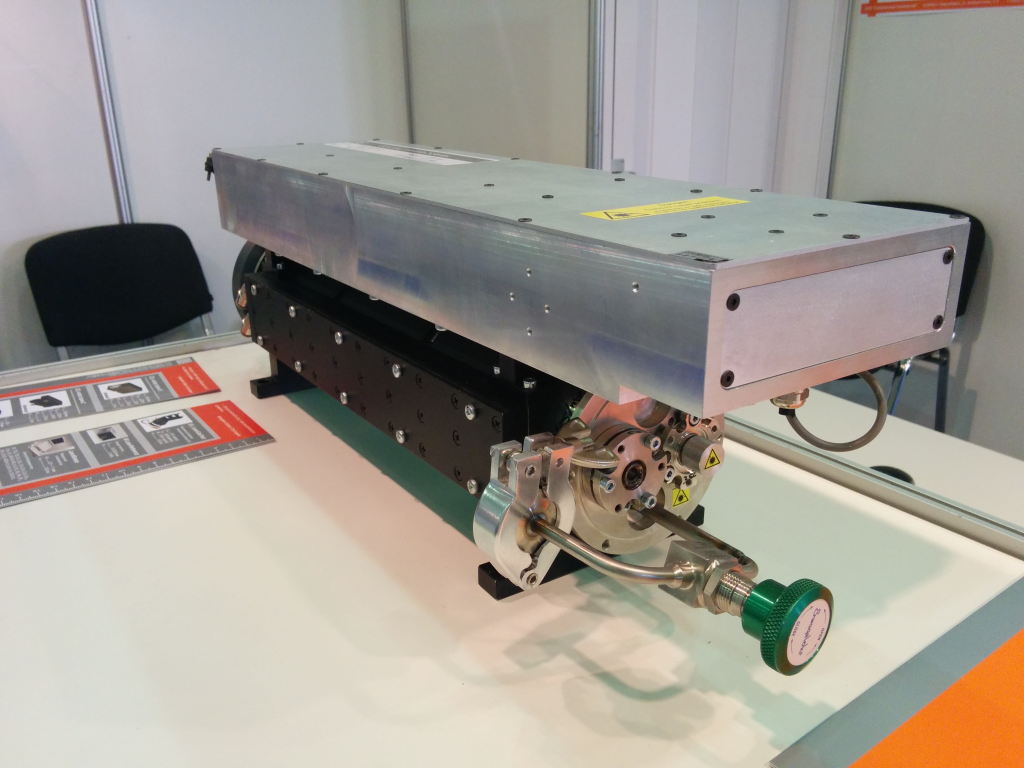

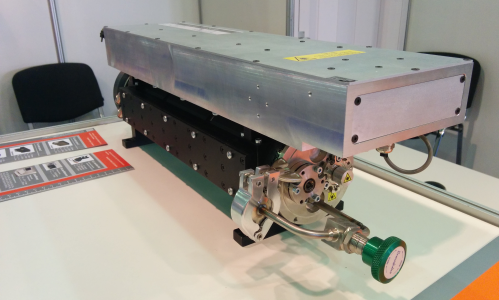

Sealed waveguide RF excited CO2-laser works in pulse-periodic mode.
It is possible to change pulse repetition frequency from 10 Hz up to 75 kHz and pulse duration from 3 up to 250 µs.
Maximum of average power is 40 W, pulse power – up to 150 W.
When pulse ratio less than 10 is necessary water cooling.
Applications:
— for construction of measuring systems of different class and purpose.
Specification
| Characteristic | Value* | |
|---|---|---|

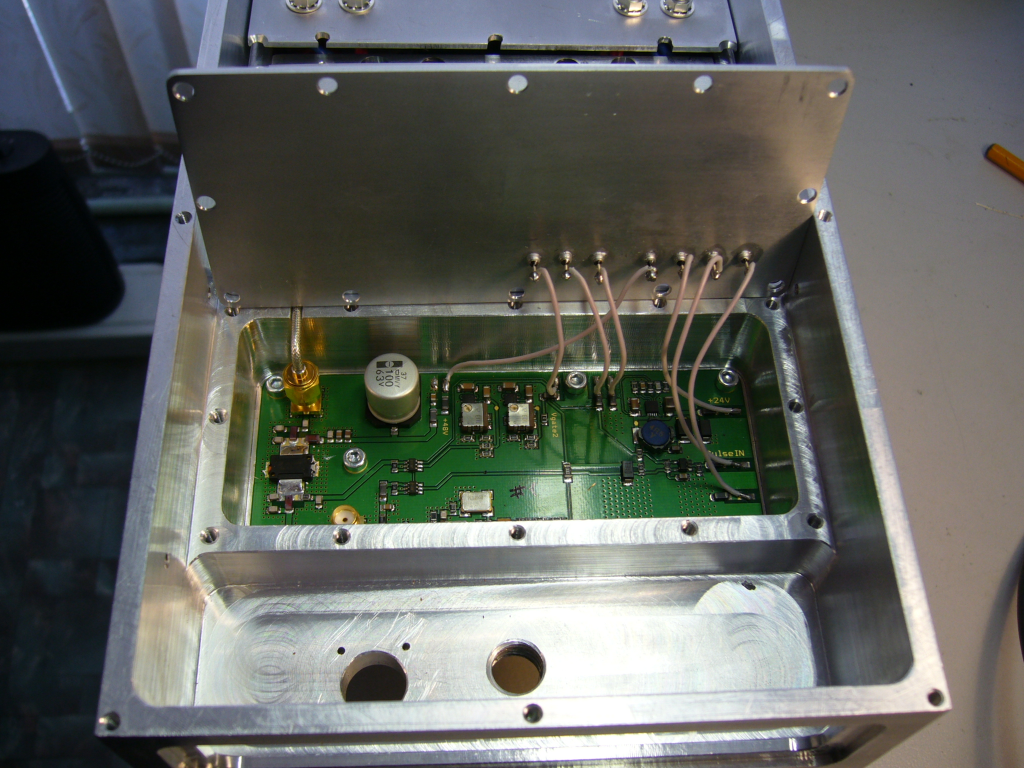

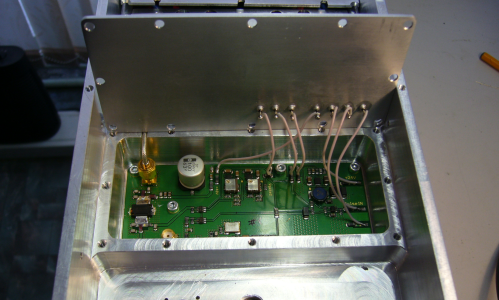

| Laser excitation | RF discharge | |
| Wavelenght range | from 9.2 up to 10.7 µm | |
| Average power | up to 40 W | |
| Pulse repetition frequency | from 0.01 up to 75 kHz | |
| Pulse duration | from 3 up to 250 µs | |
| Beam quality (М2) | < 2 | |

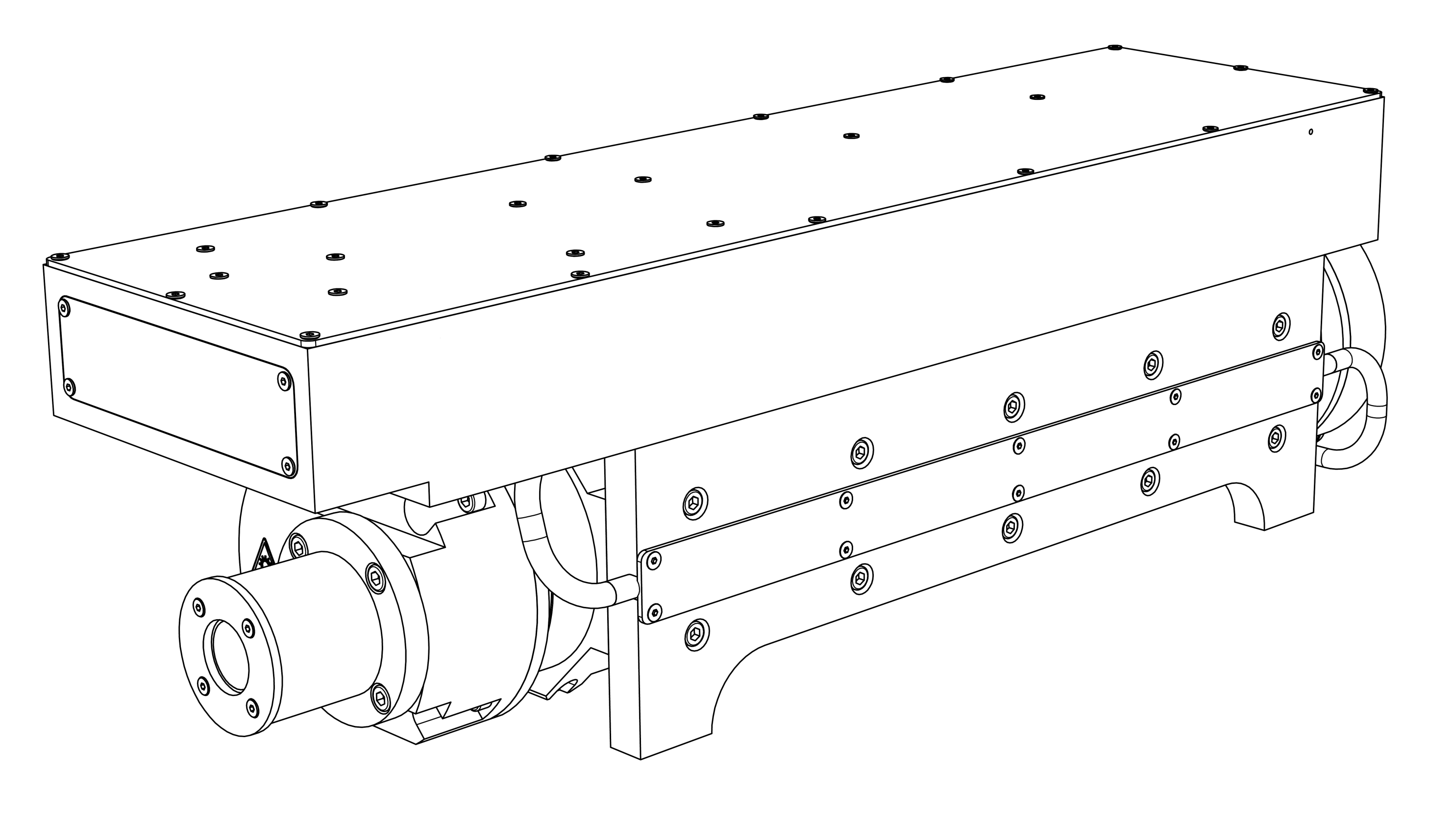

| Dimensions | 580 × 140 × 170 mm | |
| Weight | 17 kg | |
| *technical characteristic of CO2-laser can be changed on the customer's request | ||
Publications
Boyko A. A., Karapuzikov A. I., Chernikov S. B., Spitcin V. V., Zenov K G., Kuznetsova I. B., Markelov A. A. 10–60 kHz operation mode of waveguide CO2-laser with wavelength selection option // 2016 International Conference Laser Optics (LO). IEEE – 2016. – P. R2-11
DOI: 10.1109/LO.2016.7549696
