Compact CO2-laser
— Every Generation Has A Legend. Every Journey Has A First Step. Every Saga Has A Beginning. ©
Description

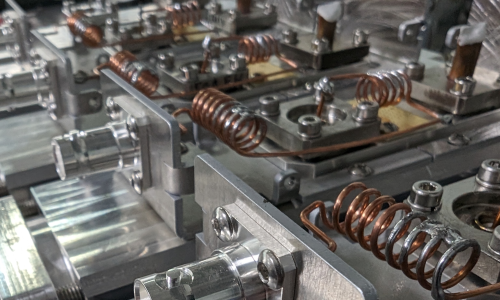

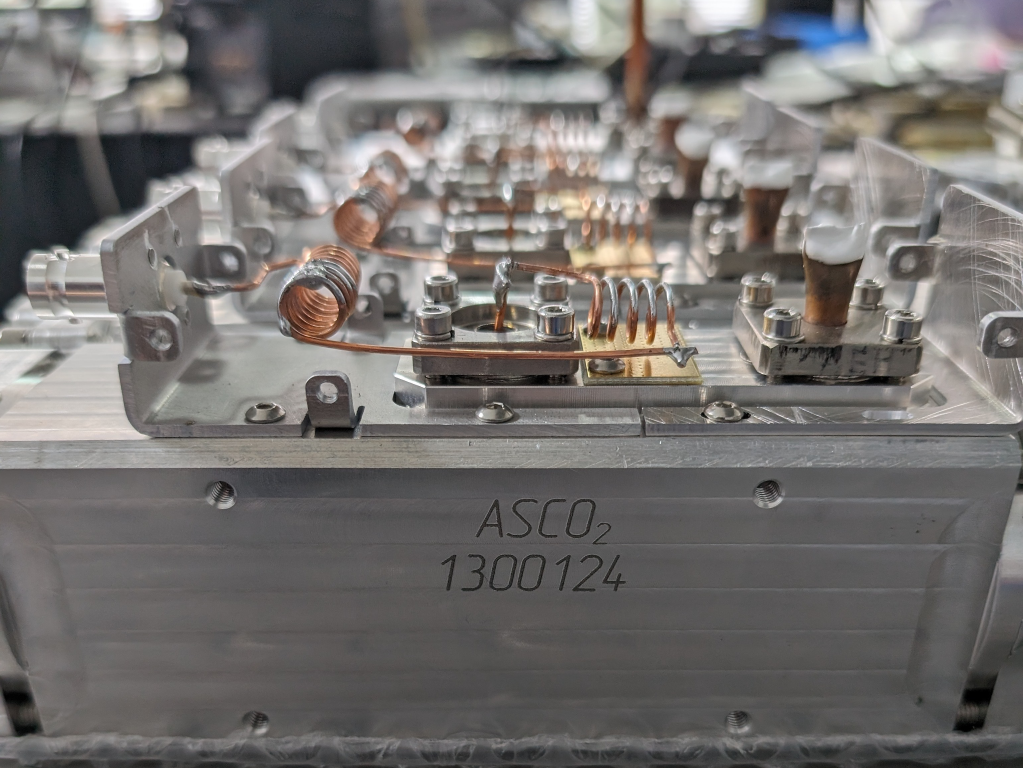

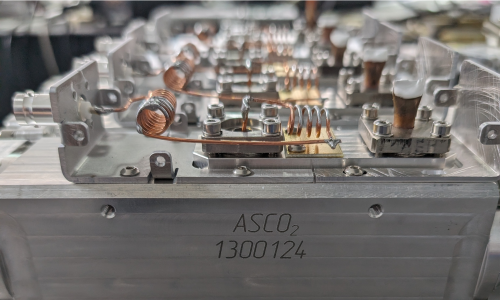

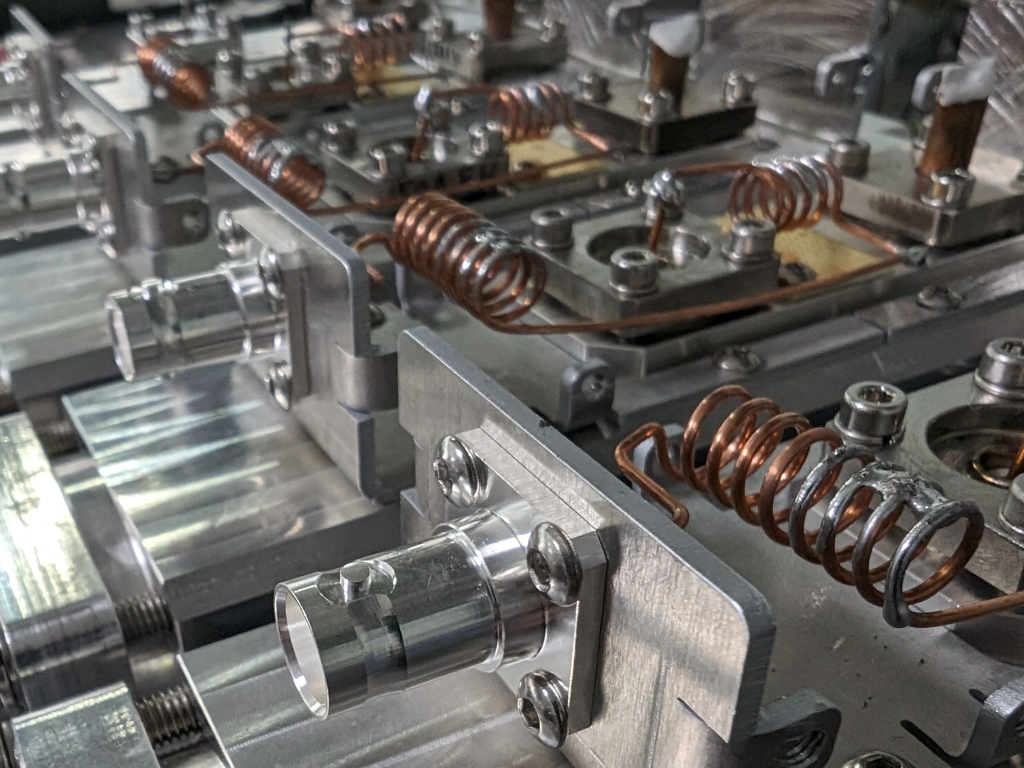

Compact sealed waveguide RF excited CO2-laser. Maximum of average power is 2 W, pulse power – up to 30 W.
Waveguide length is 225 mm.
Laser works in pulse-periodic mode.
If necessary, perhaps water cooling.
On the customer's request for the compact СО2-laser can be realized additional selection on lengths of waves of СО2 using intracavity diffraction grating.
Applications:

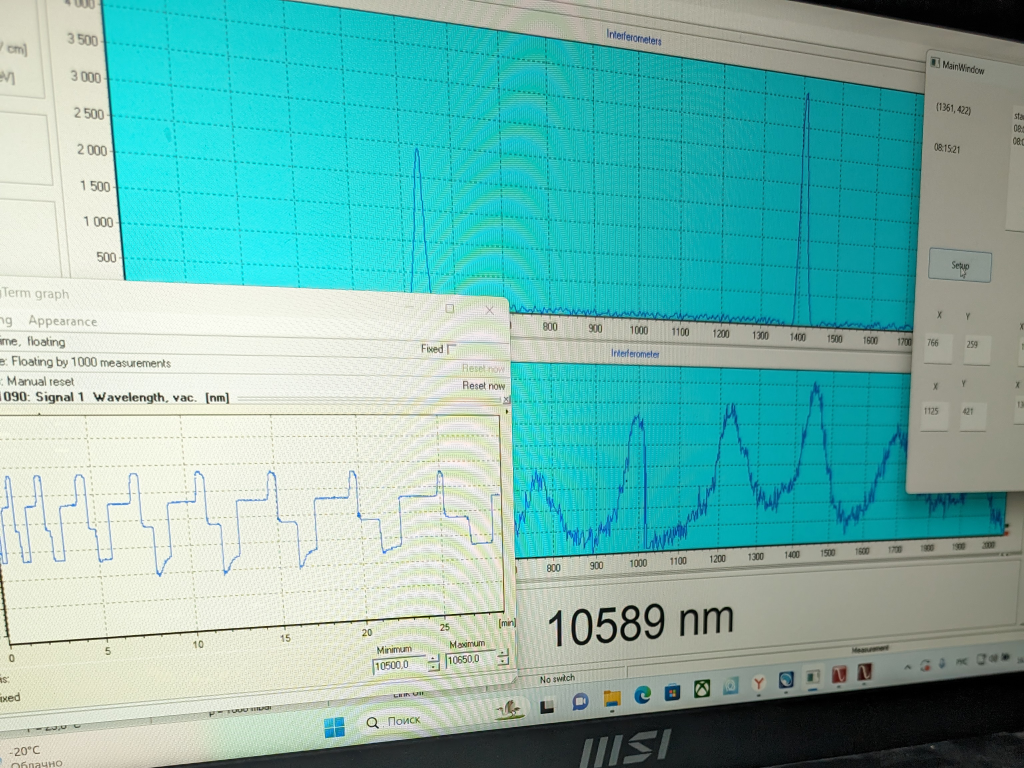

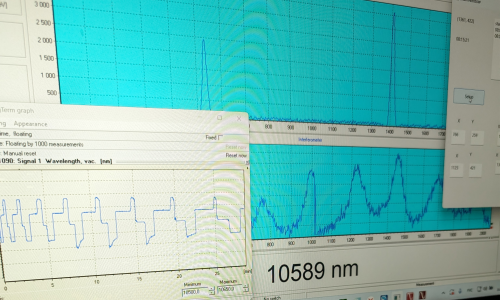

— as a laser source in spectral range 10.51…10.67 µm, including as a laser source with a wavelength of 10.6 µm for insulation gas leakage detector SF6 LaserGasTest.
Specification
| Characteristic | Value* |
|---|---|
| Wavelenght | 10.6 µm |
| Average power | up to 2 W |
| Pulse power | 25 — 30 W |
| Pulse repetition frequency | up to 3 kHz |
| Pulse duration | 30 — 150 µs |
| Beam quality (М2) | < 2 |

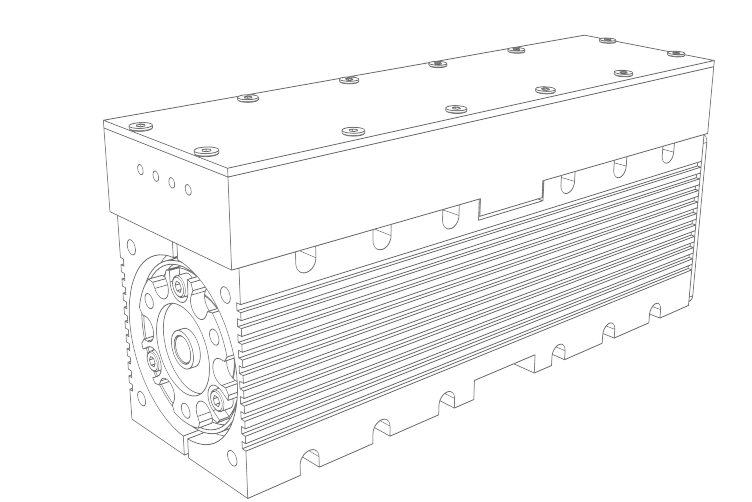

| Dimensions | 190 × 80 × 50 mm |
| Weight | 1.5 kg |
| *technical characteristic of CO2-laser can be changed on the customer's request | |
Publications
Karapuzikov A. A., Karapuzikov A. I., Kashtanov D. A., Miroshnichenko I. B., Sherstov I. V. A compact frequency-stabilized pulse-periodic waveguide CO2 laser for calibration of wavelength meters // Instruments and Experimental Techniques. – 2014. – №57, Issue 2. – P. 209-213
